Overview

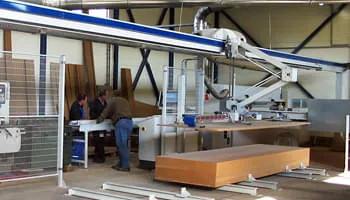

If there is room for only one row of panels, we would recommend our manipulator. As a matter of course saws and storage in- and outputs can be integrated in the system.
According to customers demands storage lenghts up to 40 m are possible.

• Increase in saw capacity
• Supply of saw from 2 stacks without interruption, even while changing material
• Damage excluded
• Fast cycle time from 15 seconds/panel
• Lowest possible gaps between stacks (from 70 mm) - best use of space
• Panel separation control with weight measurement
• Fully automatic operation (storage/removal) as well as loading of the saw
• Flexible, priority-controlled processing of orders including dynamic preparation
• All panel sizes dealable (1.5 to 5.6 m)
• Special gripper programs for thin materials; from material thickness of 3 mm
• Rotation of the panels by 90° (optional)
• Inventory and statistic available at any time, including graphical representation
• Low energy demand at high dynamic
• Weight-optimized stable construction, flexible in design and size
• Low headroom of the manipulator

The clever storage by Grundner is able to manage both single-variety
and chaotic ordered panel stacks.
